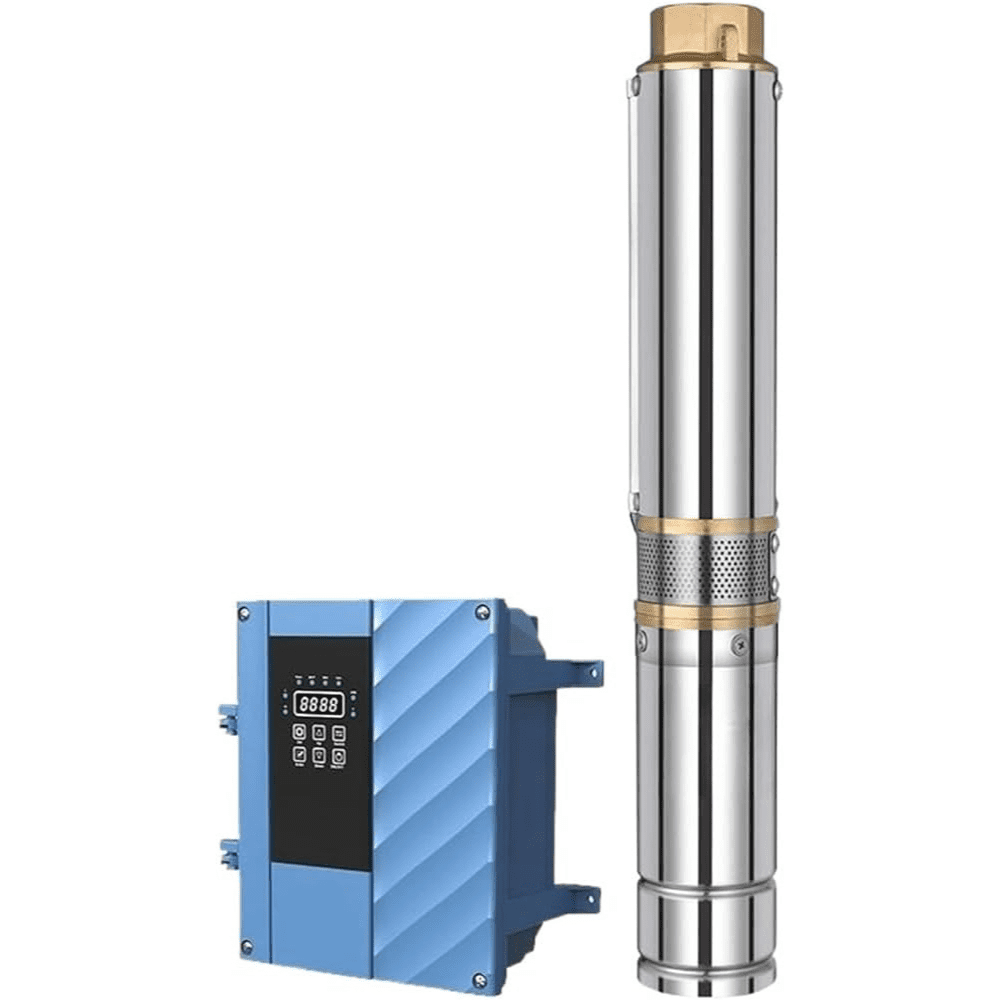

The 272m 4kW AC/DC Solar Borehole Pump is a high-performance, industrial-grade submersible pump designed for extreme deep-well water extraction and high-volume water delivery. Built for demanding environments, this pump combines power, depth capability, and energy flexibility in one advanced pumping solution.

With an impressive maximum head of 272 metres and a strong flow rate of 8,000 litres per hour, this pump is engineered to handle large-scale water requirements where conventional pumps cannot perform. It is ideal for deep boreholes, high-capacity irrigation systems, industrial water supply, and large commercial installations.

This model operates on both AC and DC power (380V / 550V), allowing seamless integration with solar systems or grid electricity. The included MPPT (Maximum Power Point Tracking) controller ensures optimal energy conversion when using solar power, maximizing efficiency and performance even under variable sunlight conditions.

Powered by a robust 4kW (4000W) motor, the pump delivers stable, continuous operation with high output while maintaining energy efficiency. Its heavy-duty stainless steel construction provides excellent resistance to corrosion, pressure, and harsh underground conditions, ensuring long service life and reliable operation.

Designed for continuous, high-load operation, the pump includes advanced protection systems such as dry-run protection, over-voltage protection, overheating protection, soft-start technology, and electrical safety controls, ensuring long-term durability and safe operation.

Key Features

• Extreme deep-well performance: pumps from depths up to 272 metres

• High-volume delivery: 8,000 L/hr (8.0 m³/hr) flow rate

• Powerful 4kW (4000W) motor for heavy-duty performance

• Hybrid power operation: AC/DC 380V / 550V compatibility

• Integrated MPPT controller for optimized solar efficiency

• Industrial-grade stainless steel construction

• Fully submersible deep borehole design

• Advanced protection systems:

  • Dry-run / water shortage protection

  • Over-voltage protection

  • Over-temperature protection

  • Soft-start technology

  • Electrical surge protection

• Designed for continuous high-load operation

• Long service life with minimal maintenance

Applications

• Large-scale agricultural irrigation

• Commercial farming operations

• Industrial water supply systems

• Community water supply projects

• High-capacity livestock watering

• Remote and off-grid water systems

• Deep borehole installations

• Commercial and institutional water infrastructure

Specifications

• Model: 4DSC8-272-380/550-4000-A/D

• Power: 4kW (4000W)

• Voltage: AC/DC 380V / 550V

• Maximum Flow Rate: 8,000 L/hr

• Maximum Head (Depth): 272 m

• Pump Type: Deep well submersible borehole pump

• Outlet Type: Submersible borehole outlet

• Controller: AC/DC MPPT solar controller

• Motor Type: High-efficiency industrial DC/AC motor

• Construction: Stainless steel body

Installation Requirements (Sold Separately)

For full system operation, the following components are required:

• Solar panels (system-sized configuration)

• Safety cable

• Submersible pump cable (custom length)

• Poly pipe

• Power cable (AC/DC system connection)

• Borehole fittings and connectors

Why Choose the 272m 4kW AC/DC Solar Borehole Pump?

This pump is built for extreme performance where standard pumps fail. It offers:

• Exceptional depth reach

• High-volume water delivery

• Hybrid solar and grid power flexibility

• Industrial durability

• Long-term reliability

• Energy efficiency

• Advanced system protection

It is the ideal solution for users who require serious pumping power, deep-well capability, and long-term operational stability for demanding water supply projects.
