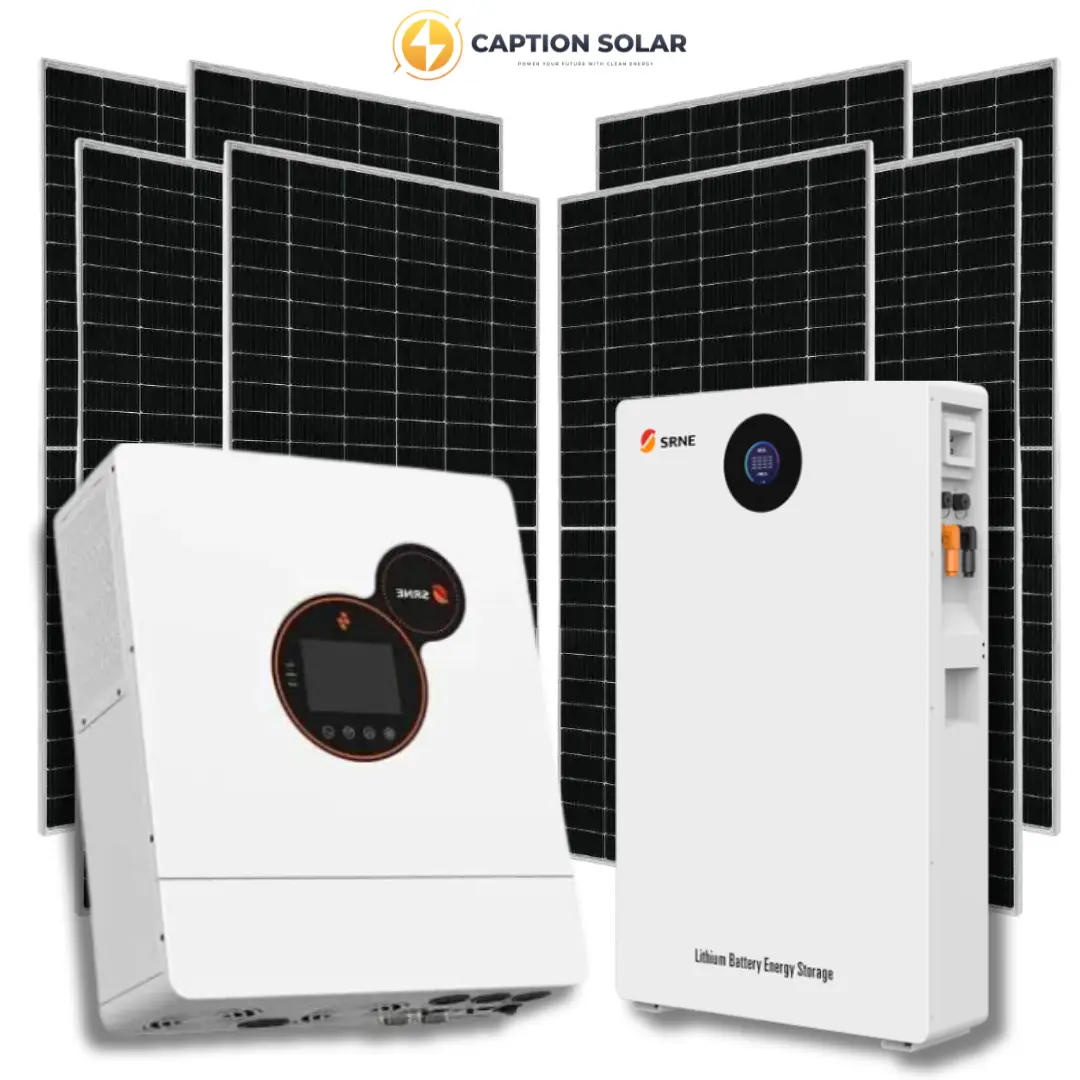

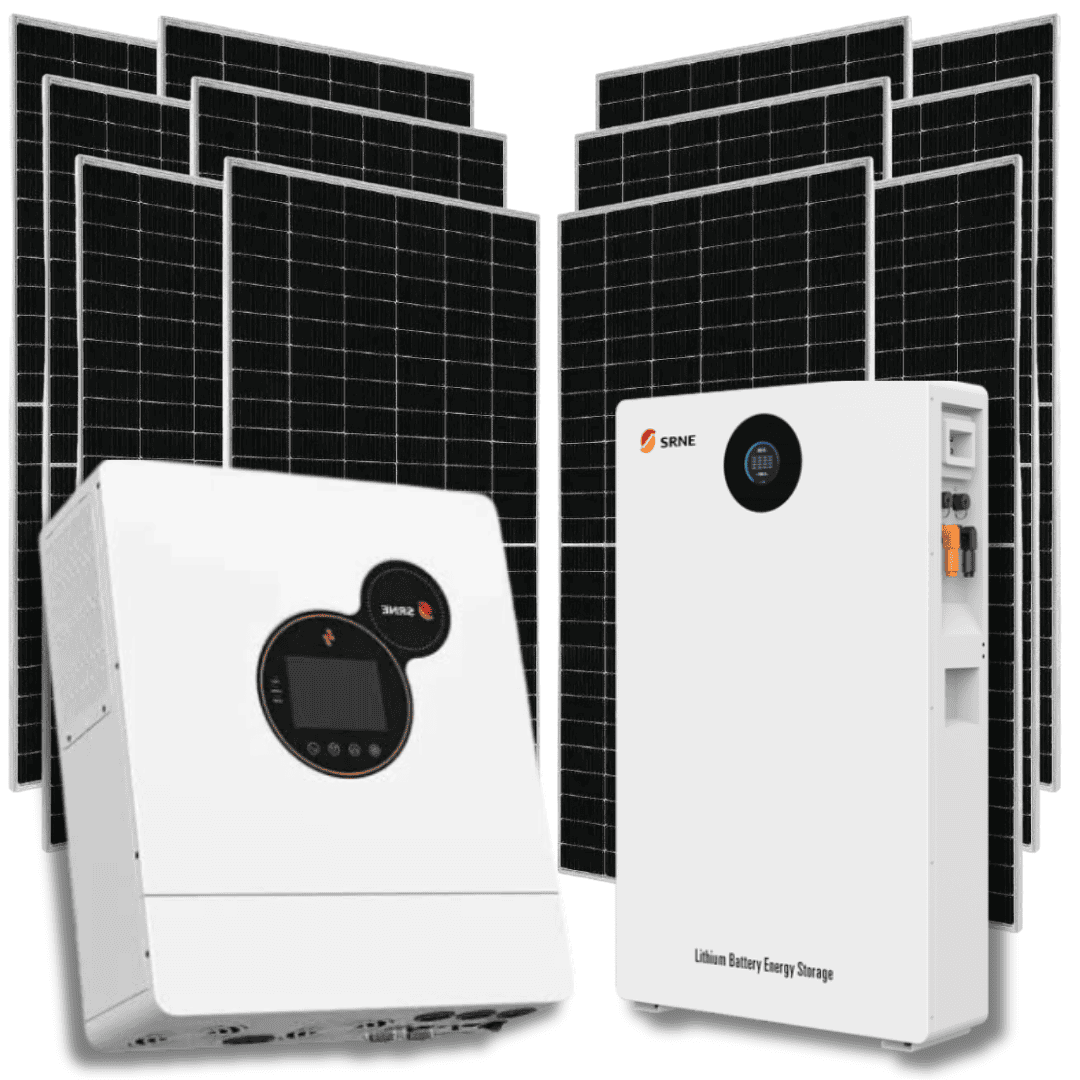

6kW 48V Hybrid Solar Package

KSh 266,000.00

The 6kW Hybrid Solar Energy Storage Kit is a premium solar power solution designed for high-energy residential, commercial, and institutional applications. Combining a 6kW pure sine wave hybrid inverter, 5.0kWp high-efficiency monocrystalline solar array, and a 5.12kWh LiFePO₄ lithium battery, this integrated system delivers exceptional energy efficiency, reliable backup power, and intelligent energy management for both grid-connected and off-grid installations.

At the heart of the system is a 6kW hybrid inverter equipped with an advanced Maximum Power Point Tracking (MPPT) charge controller that continuously optimizes photovoltaic (PV) output by tracking the array’s maximum power point. This ensures maximum solar energy harvest throughout the day, even under changing irradiance conditions. The inverter intelligently manages power generation, battery charging, grid interaction, and load supply to maximize self-consumption while minimizing electricity costs.

The system includes eight 625W high-efficiency monocrystalline solar panels, providing a combined installed capacity of 5.0kWp. The larger solar array enables higher daily energy production, allowing the system to power household or commercial loads while simultaneously charging the battery for use during the evening or utility outages.

Energy storage is provided by a 5.12kWh Lithium Iron Phosphate (LiFePO₄) battery, offering industry-leading safety, excellent thermal stability, long service life, and high depth of discharge. An integrated Battery Management System (BMS) continuously monitors battery voltage, current, temperature, and charging status to protect against overcharging, deep discharge, overcurrent, overheating, and short circuits, ensuring reliable long-term performance.

The inverter produces a stable 230V pure sine wave output, making it suitable for sensitive electronics and inductive loads such as refrigerators, freezers, televisions, computers, networking equipment, lighting, pumps, and office equipment. With its expandable architecture, the system can accommodate additional battery storage and increased solar capacity as future energy requirements grow.

Designed for continuous daily operation, the 6kW Hybrid Solar Energy Storage Kit offers a dependable, low-maintenance solution for customers seeking greater energy independence, reduced electricity bills, and uninterrupted power supply.

Technical Specifications

Hybrid Inverter

Parameter	Specification
Rated Output Power	6,000W (6kW)
Output Waveform	Pure Sine Wave
System Configuration	Hybrid (Solar + Battery + Grid)
Nominal AC Output Voltage	230VAC ±5%
Output Frequency	50/60Hz
Solar Charge Controller	Built-in MPPT
Maximum PV Input Power	Model Dependent
MPPT Operating Voltage	Model Dependent
Peak Conversion Efficiency	Up to 97%*
Transfer Time	<10ms (UPS Mode)*
Cooling Method	Intelligent Temperature-Controlled Fan
Protection Rating	IP20 (Indoor Installation)
Monitoring	LCD Display with Real-Time System Monitoring

Solar PV Array

Parameter	Specification
Number of Panels	8
Panel Rating	625W Each
Total Installed Capacity	5.00kWp
Solar Cell Type	Monocrystalline
Module Efficiency	High Efficiency
Frame Material	Anodized Aluminium Alloy
Front Glass	Tempered Low-Iron Glass
Operating Temperature	-40°C to +85°C

Lithium Battery

Parameter	Specification
Battery Chemistry	Lithium Iron Phosphate (LiFePO₄)
Nominal Energy	5.12kWh
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Battery Management System	Integrated Smart BMS
Cycle Life	≥6,000 Cycles @ 80% DoD
Maximum Depth of Discharge	90–95%
Charging Method	CC/CV
Maintenance	Maintenance-Free

System Features

6kW Pure Sine Wave Hybrid Inverter
5.00kWp High-Efficiency Monocrystalline Solar Array
5.12kWh LiFePO₄ Lithium Battery Storage
Advanced MPPT Solar Charge Controller
Intelligent Energy Management Between Solar, Battery, Grid, and Loads
Automatic Backup Power During Utility Outages
High Solar Conversion Efficiency
Pure Sine Wave Output for Sensitive Electronic Equipment
Expandable Solar PV and Battery Storage Capacity
Fast Battery Charging with Optimized Energy Utilization
Real-Time LCD System Monitoring
Quiet, Efficient, and Low-Maintenance Operation
Compact Wall-Mounted Installation

Protection Functions

The system incorporates advanced electronic protection features to ensure maximum safety and long-term reliability:

Overload Protection
Short Circuit Protection
Battery Overcharge Protection
Battery Deep Discharge Protection
Reverse Polarity Protection
Over Temperature Protection
Over Voltage Protection
Under Voltage Protection
PV Input Protection
Automatic Fault Detection and Recovery

Package Contents

1 × 6kW Hybrid Solar Inverter
8 × 625W Monocrystalline Solar Panels (Total PV Capacity: 5.00kWp)
1 × 5.12kWh (51.2V 100Ah) LiFePO₄ Lithium Battery

Ideal Applications

The 6kW Hybrid Solar Energy Storage Kit is ideal for:

Large Residential Homes
Villas and Townhouses
Offices and Corporate Workspaces
Retail Shops and Supermarkets
Schools and Learning Institutions
Health Centres and Clinics
Hospitality Businesses
Small Industrial Facilities
Farms and Agricultural Operations
Hybrid and Off-Grid Solar Installations
