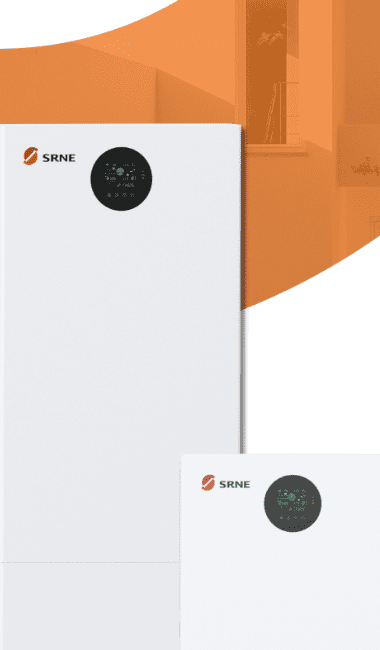

⚡ EOT 5kW All-in-One Solar Storage System

Powerful. Scalable. Built for Modern Energy Demands.

The EOT 5kW All-in-One Solar Storage System is an advanced solar power solution that combines a 5kW inverter, high-capacity lithium battery, and intelligent energy management in one sleek, space-saving unit. Designed for larger homes, offices, and small commercial facilities, it provides robust, uninterrupted, and highly efficient energy performance day and night.

🔧 Key Features

• High Power Output (5kW / 10kVA Peak)
  Effortlessly supports multiple household or office appliances with stable, pure sine wave power for sensitive electronics and high-starting motors up to 4HP.

• High-Efficiency MPPT Controller
  Achieves up to 99.9% MPPT tracking efficiency, maximizing energy harvest from your solar panels even under changing sunlight conditions.

• Integrated Lithium Battery (5.12kWh)
  Long-lasting LiFePO₄ battery with 6,000+ charge cycles ensures superior durability, safety, and performance.

• Expandable Energy Capacity
  Scale your system as your energy needs grow — connect up to 3 batteries in parallel (20.48kWh total) and 2 inverters in parallel for a combined output of 10kW.

• Hybrid Load Function
  Optimizes solar utilization by intelligently managing power from solar, battery, and grid sources to reduce grid reliance and maximize savings.

• Built-in Manual Bypass Switch
  Enables quick, safe manual switching between power supply modes for maintenance or emergencies.

• Smart Monitoring & Connectivity
  Stay informed with a large LCD display and Wi-Fi app monitoring, providing real-time insights into system status, energy production, and battery health.

• Integrated Circuit Protection
  Enhanced system safety with built-in circuit breaker and overcurrent protection.

• Space-Saving Design
  Ultra-slim (only 13 cm width), modern aesthetic, and flexible wall-mount or floor-standing installation—ideal for residential and commercial spaces.

⚙️ Technical Highlights

• Rated Output Power: 5,000W

• Peak Power: 10,000VA

• Battery Type: LiFePO₄ (5.12kWh, 100Ah, 51.2V)

• Max PV Input Power: 5,500W

• MPPT Voltage Range: 120–450V DC

• Max PV Open Circuit Voltage: 500V DC

• Charge Current: Up to 100A

• AC Input Voltage Range: 90–280V AC

• System Efficiency: 99.9% MPPT Tracking

• Dimensions: 972 × 555 × 130 mm

• Weight: 85 kg

• Protection Rating: IP20 (Indoor use)

• Certifications: CE, RoHS, IEC61000-6:2019, UN38.3, NRS097

🏡 Ideal Applications

• Homes with high energy demands

• Small businesses and retail shops

• Hybrid and off-grid solar setups

• Backup for IT, refrigeration, or medical systems

• Energy-efficient commercial spaces

☀️ Reliable Power for the Future

With its scalable design, hybrid efficiency, and intelligent management, the EOT 5kW All-in-One Solar Storage System is the perfect choice for those who need more power, more flexibility, and total energy independence — all in one powerful unit.
