SRNE HF 1.5kW 12V Single-Phase Off-Grid Solar Storage Inverter

KSh 23,500.00

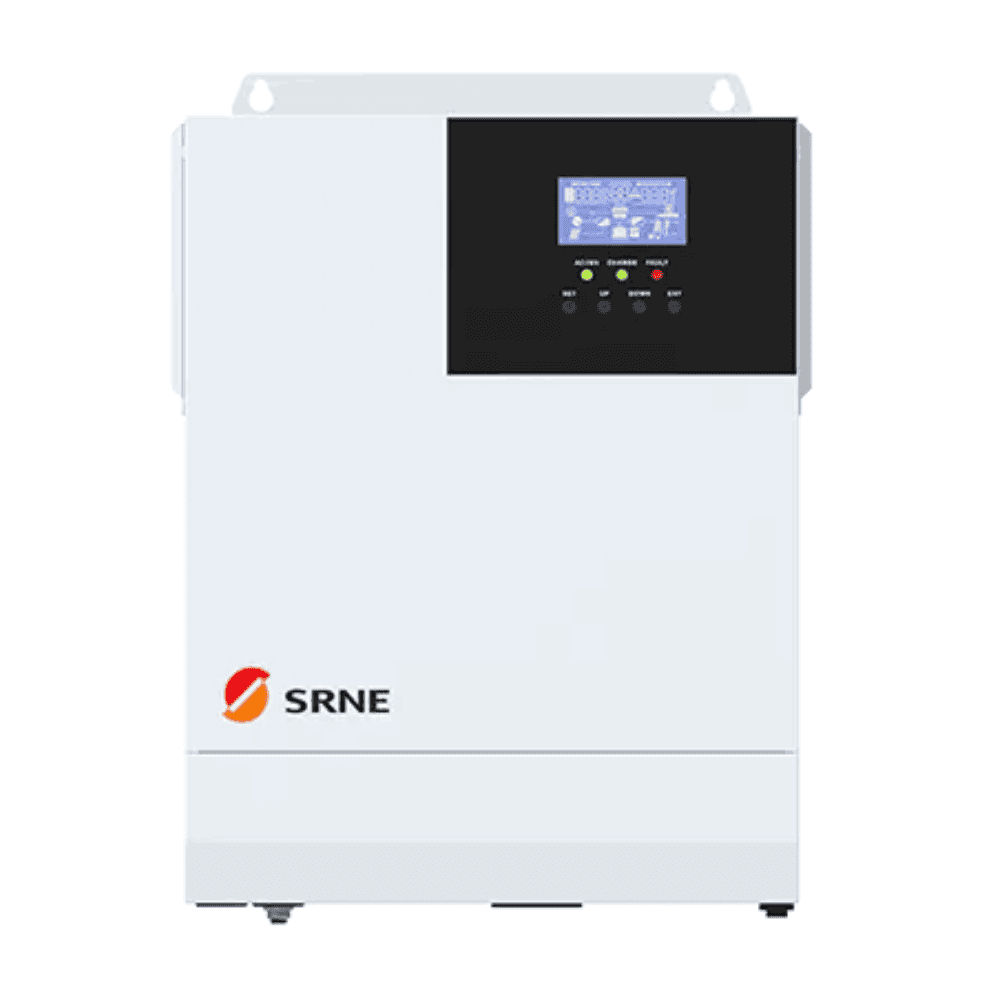

SRNE HF1215S60-108 1.5kW 12V Single-Phase Off-Grid Solar Storage Inverter

The SRNE HF1215S60-108 is a compact 1.5kW single-phase off-grid solar storage inverter designed for reliable solar energy conversion, battery storage, and backup power applications. It features a built-in MPPT solar charge controller and supports multiple charging modes, allowing efficient use of solar, battery, grid, and generator power.

Key Features

1.5kW rated output power
3,000VA maximum peak power
Pure sine wave output
Supports 12V lead-acid, lithium-ion, and user-defined batteries
Built-in MPPT solar charge controller
Supports solar, grid/generator, and hybrid charging
60A maximum solar charging current
120A maximum hybrid charging current
10ms typical transfer time
Optional Wi-Fi/GPRS remote monitoring
Multiple built-in protection functions
Efficient fan cooling for improved heat dissipation
Compact and lightweight design
2-year warranty

Technical Specifications

Specification	HF1215S60-108
Rated Output Power	1,500W
Maximum Peak Power	3,000VA
Rated Output Voltage	230Vac, Single-Phase
Load Motor Capacity	1HP
Rated Frequency	50/60Hz
Waveform	Pure Sine Wave
Typical Switch Time	10ms
Battery Type	Lead-Acid / Li-ion / User-Defined
Rated Battery Voltage	12V
Battery Voltage Range	10.5–15.5Vdc
Max. Solar Charging Current	60A
Max. Grid/Generator Charging Current	60A
Max. Hybrid Charging Current	120A
No. of MPPTs	1
Max. PV Array Power	1,000W
Max. PV Input Current	60A
Max. PV Open Circuit Voltage	108Vdc
MPPT Voltage Range	15–90Vdc
Grid/Generator Input Voltage	170–280Vac
Input Frequency	50/60Hz
Bypass Overload Current	9.7A
MPPT Tracking Efficiency	99.9%
Maximum Efficiency	92%
Dimensions	357.5 × 235 × 103mm
Weight	5.5kg
Cooling Method	Fan Cooling
Protection Degree	IP20
Operating Temperature	-10°C to 55°C
Humidity	0–100%
Communication	RS485/CAN/USB/Dry Contact
Optional External Module	Wi-Fi/GPRS
Topology	Transformerless
Warranty	2 Years
Certifications	RoHS / IEC 62109 / EN61000/C2

Protection Functions

The inverter is equipped with PV current and power limit protection, PV night anti-reverse charging protection, utility input overvoltage and undervoltage protection, battery overvoltage and undervoltage protection, and load output short-circuit protection.

Model: HF1215S60-108
Brand: SRNE
Power: 1.5kW
System Voltage: 12V
Type: Single-Phase Off-Grid Solar Storage Inverter
