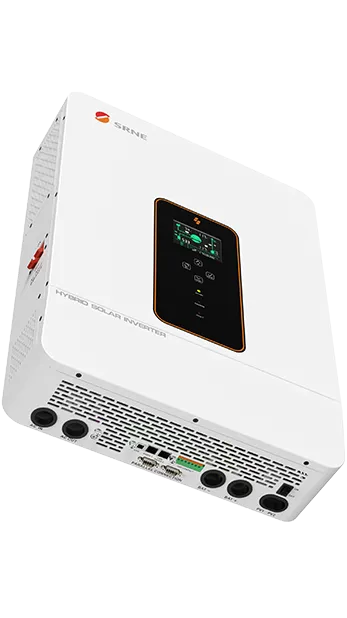

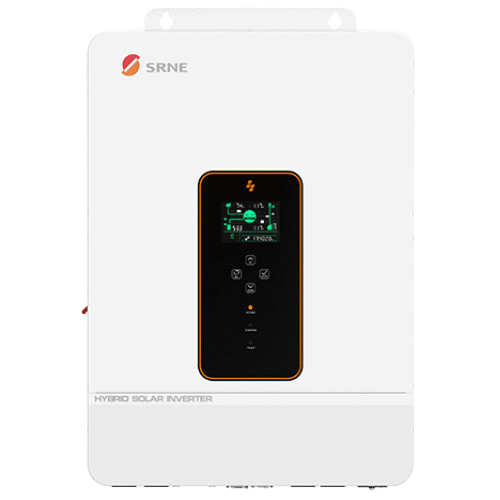

SRNE ASF 10 kW Single-Phase Off-Grid Solar Storage Inverter
SRNE ASF 10 kW Single-Phase Off-Grid Solar Storage Inverter
Reliable. Efficient. Smart energy management.
The ASF 10 kW inverter from SRNE is designed for off-grid solar systems that demand high performance and stable power output. Built with advanced MPPT technology and robust safety features, it ensures maximum solar utilization, reliable energy storage, and uninterrupted supply for homes, businesses, or remote installations.
🔹 Key Features
-
10 kW Rated Output Power with peak capacity up to 20 kVA
-
Compatible with 48 V storage batteries (Li-ion, lead-acid, or user-defined)
-
Dual independent MPPT inputs (up to 5,500 W + 5,500 W PV input)
-
High PV input current: 22A + 22A
-
Pure sine wave output at 230 Vac, single-phase, 50/60 Hz
-
Time-slot function to reduce costs with peak-valley tariffs
-
Advanced safety protections: over-voltage, under-voltage, overload, short-circuit, and temperature control
-
Durable design with industrial-grade build and 2-year warranty
🔹 Technical Snapshot
| Specification | Value |
|---|---|
| Rated Power | 10,000 W |
| Peak Power | 20,000 VA |
| PV Input Power | 11,000 W (5,500 W + 5,500 W) |
| MPPT Trackers | 2 Independent |
| PV Input Voltage | 125–425 Vdc |
| Battery Voltage Range | 40–60 Vdc |
| Output | 230 Vac, 50/60 Hz |
| Max Efficiency | ~92% (up to 99.9% MPPT tracking) |
| Dimensions | 620 × 445 × 130 mm |
| Weight | 27 kg |
| Warranty | 2 Years |
Why Choose the SRNE ASF 10 kW?
Perfect for off-grid homes, small businesses, and backup systems, this inverter offers high power capacity, flexible battery options, and intelligent solar harvesting. With SRNE’s 15+ years of innovation and 200+ patents in energy storage, you can trust the ASF series for reliable, long-term performance.
